Factory Supply 24GHz Motion Detection Radar for Range-Measurement and Anti-Collision for Uavs

Factory Supply offers a 24GHz Motion Detection Radar for UAVs, providing precise range measurement and anti-collision capabilities. Shop now for reliable UAV safety solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • Product Description
  • Certifications
  • Our Exhibition
  • Test Equipment
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
SP25
Theory
Doppler
Transmit Frequency
24GHz
Distance Range
28m
Protection Class
IP66
Elevationangle
38 Deg
Working Temperature
-60~125 Deg
Transport Package
Packed by Carton
Specification
40x31x6(LxWxH)
Trademark
Nanoradar
Origin
China
Production Capacity
1000000PCS/Year

Product Description



Company Profile



Factory Supply 24GHz Motion Detection Radar for Range-Measurement and Anti-Collision for Uavs

Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.

Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.

Product Description

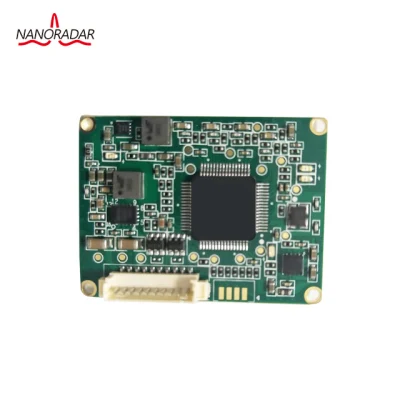

SP25 is a K-Band radar sensor developed by Nanoradar. It has the advantages of being small size, high sensitivity, light weight, easy to integrate, cost efficient and stable performances. And it has the function of range-measurement and collision avoidance. Now it is widely applied in the UAVs, industrial machinery, intelligent lighting, robots, hydrologic monitoring and railway vehicle safety etc.



Series:
24GHz MMW radar



Application:
Range-measurement and anti-collision for railway vehicles,Range-measurement and anti-collision for robots,Range-measurement and anti-collision for UAVs,Range-measurement and anti-collision for machineries,Intelligent radar lighting-control system,Range-measurement and anti-collision for hydrological monitoring ships,Radar video fusion system.



Features:

  • With working frequency of 24GHz-ISM for the detection of moving targets
  • Accurately measure the range and velocity of moving targets
  • Compact structure and small size(40x31x6mm)
  • Low power consumption(0.5W)
  • FMCW modulation mode

 Specifications:

PARAMETER CONDITIONS
Transmit frequency  24GHz
Output power(EIRP)  12dBm
Modulation type  FMCW
Update rate  50Hz
Communication interface  UART
Range-measurement range @0 dBsm 30m
Velocity-measurement range  -70~70m/s
Beam width/TX azimuth(-6dB) 100deg
elevation(-6dB) 38deg
Supply voltage  5~16V DC
Weight  4g
Outline dimensions  40x31x6(LxWxH)mm





Certifications



Factory Supply 24GHz Motion Detection Radar for Range-Measurement and Anti-Collision for Uavs

Our Exhibition

Factory Supply 24GHz Motion Detection Radar for Range-Measurement and Anti-Collision for Uavs

Test Equipment

Factory Supply 24GHz Motion Detection Radar for Range-Measurement and Anti-Collision for Uavs

After Sales Service

Factory Supply 24GHz Motion Detection Radar for Range-Measurement and Anti-Collision for Uavs

FAQ



1 Q:Do you have any discount?

A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.



2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.



3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.



4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.



5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.



6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.



7 Q:How the stability of products?
A:3~5 years is ok in normal situation.



8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
