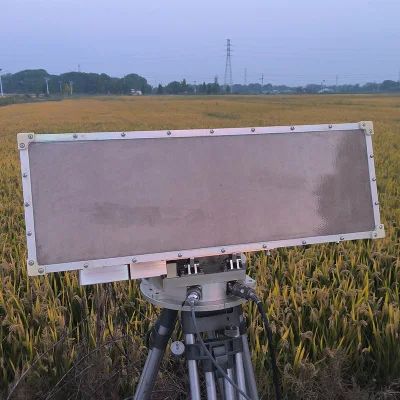

Long Distance Range Drone Uav Detection Radar for Anti System Tracking

Our factory produces long distance range drone UAV detection radar for anti-system tracking. Our high-quality products ensure efficient and reliable tracking.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • Product Description
  • Certifications
  • Delivered Projects
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
R10Z07
Detection Range
Distance≥75km( Rcs=2m2)
Scanning Range
360°×90°
Single Target Tracking Data Rate
50ms
Ground Clutter Improvement Factor
≥45dB
Interface
Gigabit Network Interface
Protocol
UDP
Size
≤1.6m*1.6m*0.3 M
Transport Package
Flight Case
Specification
500kgs
Trademark
ADT
Origin
China

Product Description




Company Profile

Long Distance Range Drone Uav Detection Radar for Anti System Tracking

Product Description

item parameter
Operating Frequency X band
Scanning range Mechanical scanning 360°×90°
Electric scanning 90°×12°
detection distance:  ( RCS=0.01m2) Max  Distance≥15km
  High≥2km
Min Distance≤150m
target speed ±2~±300m/s
detection distance:  ( RCS=2m2) Max  Distance≥75km
  High≥6km
Min Distance≤150m
target speed ±2~±300m/s
Accuracy Distance accuracy ≤15m
Azimuth accuracy ≤0.2°
Pitch accuracy ≤0.2°
Data refresh rate   12RPM/6RPM
Single target tracking data rate 50ms
Ground clutter improvement factor ≥45dB(σv=0.32m/s)
size ≤1.6m*1.6m*0.3 m
weight ≤120kg(host)
≤500kg(whole system)
Interface Gigabit network interface
Power 180~250V,50±3Hz,
total power ≤3Kw
Fault detection rate ≥90%
Environmental adaptability working temperature: - 40 °~+60 °
Storage temperature: - 45 °~+60 °;
Humidity: 90% (35 ° non-condensing);
Altitude: ≤ 3000m
Reliability MTBF≥2000h;
MTTR≤30min;
COT: 7 * 24 hours continuous work
Protocol UDP

Certifications

Long Distance Range Drone Uav Detection Radar for Anti System TrackingLong Distance Range Drone Uav Detection Radar for Anti System TrackingLong Distance Range Drone Uav Detection Radar for Anti System TrackingLong Distance Range Drone Uav Detection Radar for Anti System TrackingLong Distance Range Drone Uav Detection Radar for Anti System Tracking
Long Distance Range Drone Uav Detection Radar for Anti System Tracking
Long Distance Range Drone Uav Detection Radar for Anti System Tracking

Long Distance Range Drone Uav Detection Radar for Anti System Tracking

Delivered Projects

Long Distance Range Drone Uav Detection Radar for Anti System Tracking

After Sales Service

· RELIABILITY: 12 months warranty aggrement
· OPERATE: Free provided practical training and teaching video
· TECHNICAL SUPPORT: Provide solution to all problems
· REPAIR & CHARGE: We support spare parts, so customers can replace it byself

FAQ

1. What's your best price?
-We offer customized design, and the price is based on quantity or optional parts. Contact us to get more!

2. How do you provide training service?
-All our products are modular-design, easy to operate and maintain for anyone from anywhere.
-We also provide on-line courses and off-line training in our company.
-Every client will be required to pass the exam before operating.

3. What's your advantage compared with other suppliers?

-Professional teams
-Long time experiences
-Global markets coverage

4. What about the warranty of  UAV DRONE?
-1 year warranty for drone frame and software, three months for wearing parts.

5. Do you support customized products?
-Yes, we welcome the customized products for the client.
Hangzhou Star Sea Technology has its own R&D departments.

6. How to build trust in first-time cooperation?
-We are trusted and chosen in many industries. Welcome to China and visit us. All products can be tested here.
